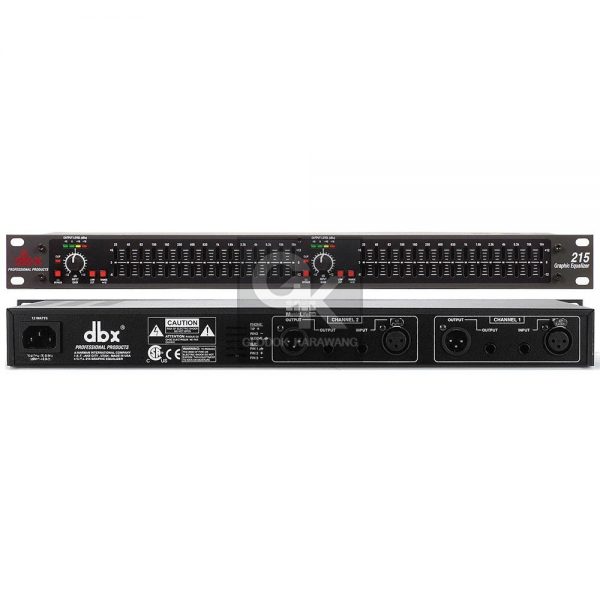

equalizer 215 dbx

Equalizer 215 dbx

Features
Two 15-band, 2/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
12dB per octave, 3dB down @ 50Hz low-cut filter
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inpts and Outputs
Internal Toroidal Transformer
Frequency Repsonse of 50kHx
Dynamic range of greater than 108dB
Specifications
INPUT
Connectors: 1/4″ TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz
OUTPUTS
Connectors: 1/4″ TRS, male XLR (pin 2 hot)
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 100 ohm, unbalanced 50 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
SYSTEM PERFORMANCE
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: 50kHz, +0.5/-3dB
Dynamic Range: 108dB
Signal-to-Noise: 90dB
THD+Noise: <0.004% Interchannel Crosstalk: <-80dB, 20Hz to 20kHz FUNCTION SWITCHES EQ Bypass: Bypasses the graphic equalizer section in the signal path Low Cut: Activates the 50Hz 12dB/octave high-pass filter Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range POWER SUPPLY Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz Power consumption: 12W Main Connection: IEC receptacle

Category:

Description

Dual Chanel 15-Band Equalizer
The dbx® 2-Series Graphic Equalizers have been designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straight forward controls. The 215 not only provides standard features like dual channels, 15 2/3 octave bands, ISO frequency meters, +/- 12dB input gain range, and switchable 50Hz/12dB octave low-cut filters, but also includes other thoughtful features.

These features include: 20 mm faders; selectable +/-6dB or +/-12dB boost/cut range for precise gain adjustments; XLR, and 1/4″ TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx® 2-Series has been pursued to make your job easier.

The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range, internal toroidal transformer, the 2-Series offers out of this world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx® signal processors that are the professional’s choice in signal processing. With such affordable quality, there’s no longer any excuse for compromising your sound.

Additional information

Brand

Dbx
