power macro tech 12000i crown

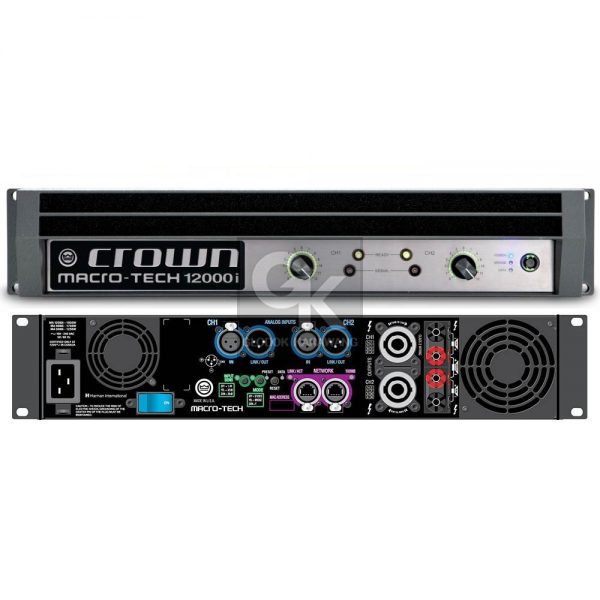

Power Amplifier Macro Tech MA12000i Crown

Power output 2 ohm : 2 x 6000w
Power output 4 ohm : 2 x 4500w
Power output 4 ohm : 7500w bridge
Power output 8 ohm : 2 x 2100w
Power output 8 ohm : 9000w bridge

Frequency Response (at 1 watt, 20Hz – 20 kHz into 8 ohms)
± 0.25 dB
Signal to Noise Ratio below rated full-bandwidth power,
> 108 dB
Total Harmonic Distortion (THD) at 1 watt into 8 ohms
< 0.1% Total Harmonic Distortion (THD) Plus Noise at full rated power < 0.35%, 20 Hz to 20 kHz Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to –30 dB < 0.35% Damping Factor (20 Hz to 100 Hz at 8 ohms) > 5000
Crosstalk (below rated power, 20 Hz to 1 kHz)
> 80 dB
Common Mode Rejection (CMR) (20 Hz to 1 kHz)
> 55 dB, typically > 70 dB
DC Output Offset (Shorted input)
< ± 3 mV Input Impedance (nominal) 10 kilohms balanced, 5 kilohms unbalanced Maximum Input Level +20 dBu typical Load Impedance (Note: Safe with all types of loads) Stereo: 1/2/4/8/16 ohms Bridge Mono: 2/4/8 ohms Input Sensitivity (referenced to 8 ohm rated output) 1.4V, 32 dB gain, and 26 dB gain Voltage Gain (referenced to 8 ohm rated output) MAi-12000i : 39.3 dB to 24.5 dB Required AC Mains Universal AC input, 100-240VAC , 50/60 Hz (±10%). Maximum AC mains voltage 264VAC. AC Line Connector Five cordsets supplied with amplifier (USA, UK, European, Australia, India) Construction Cooling Dual-zone, microprocessor controlled, continuously variable speed fans, front-to-back airflow Front Panel Cast aluminum with integrated handles. Weight 28 pounds (12.7 kg) net, 36 pounds (16.3 kg) shipping. Dimensions (W x H x D) 19 in. (48.3 cm) W x 3.5 in. (8.9 cm) H x 16.2 in. (41.1 cm) D. Protection Amplifier is protected against reactive loads, faults and shorts. If one channel experiences a catastrophic failure, the entire amplifier will shut down.



The Crown® Macro-Tech® i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection. Modern power amplifiers are sophisticated pieces of engineering capable of producing extremely high power levels. They must be treated with high power levels. They must be treated with respect and correctly installed if they are to provide the many years of reliable service for which they were designed. In addition, MA-i Series amplifiers include a number of features which require some explana tion before they can be used to their maximum advantage.

The Crown® Macro-Tech® i Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
Global Power Supply — designed to deliver maximum power no matter what country you work in
Built-in load, line voltage, input and output monitoring
Standard Ethernet networking via System Architect® lets system operators monitor and control the amplifier from any location

Additional information
