2 Ohm 300w x 2
4 ohm 500w x 2
8 ohm 300w x 2
Spesifikasi Umum
Total distorsi harmoni : 0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
Respon frekuensi : ±1.0dB (1W, 8Ω, 20Hz to 20kHz)
Crosstalk : Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
Rasio S/N : 100dB (A-weighted, 8Ω, Gain setting = +14dBu)
Konsumsi daya : 160W (1/8 MAX power, 4Ω, Pink noise at all channels), 55W (4Ω, Idling)
Berat bersih : 6.9kg
Pendingin : 16 step variable speed fan x 2, front to rear airflow
Kelas Amplifier : Class D, Balanced output circuit (BTL)

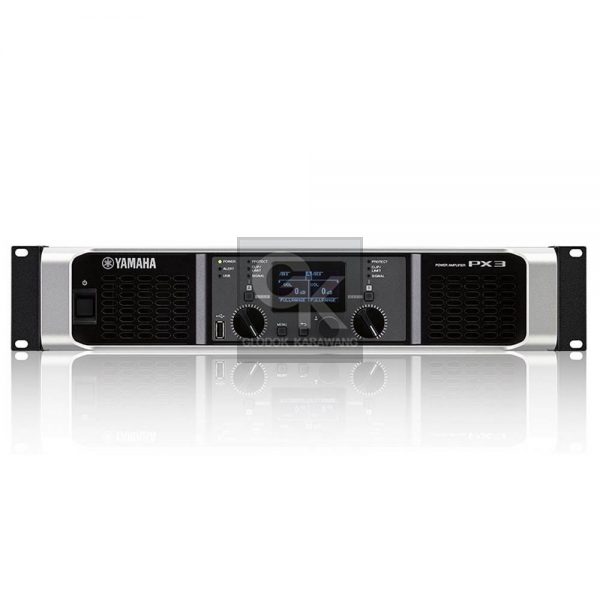

The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 300W x 2 at 8Ω / 500W x 2 at 4Ω.
2x 300W at 8Ω
2x 500W at 4Ω
Newly developed Class-D amplifier engine with a custom LSI
Flexible onboard PEQ, crossover, filters, delay, and limiter functions
Yamaha Speaker presets
Utlities for safe and secure operation
| Brand | Yamaha |
|---|
