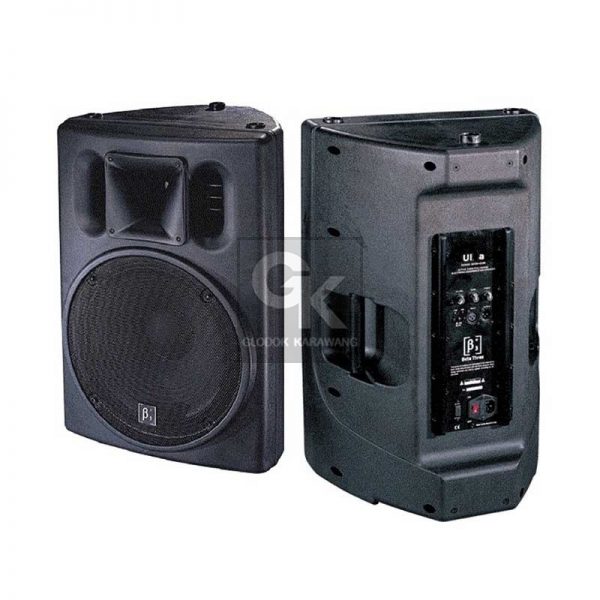

speaker aktive u12a beta three

Speaker Aktive U12A Beta Three

Construction Plastic
Transducers 1 x 1.7” HF + 1 x 12” LF
Frequency Response (-3dB) 55Hz-18kHz
Rated Power 100W HF, 300W LF (RMS)
Amplifier Type Class H
Maximum SPL (1W @ 1m) 118dB (Peak)
Input Impedance Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance 8Ω
Dispersion (H x V ) Dispersion (H x V )
Connector 2 x XLR
Power Supply 110V/220V
Dimensions (W x D x H) 415mm (16.3”) x 382mm (15”) x 620mm (24.4”)
Packaging Dimensions (1 piece/pack) 465mm (18.3”) x 435mm (17.1”) x 680mm (26.8”)
Net Weight (1 piece/pack) 23kg (50.7lb)
Gross Weight (1 piece/pack) 25.2kg (55.6lb)



Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.
Key Features and Benefits:
High output SPL and sensitivity
1 x 12” high power transducer with 50mm voice coil
1 x 1.7” diaphragm compression driver
Rotatable Horn: 50º-100º x 55º controlled coverage pattern
Built-in Bi-amp power amplifier module
Master volume control
Bass and Treble control
XLR input and output connectors
Switchable between Mic and Line input
Heavy duty protective grill
Injection molded
2 x XLR connector
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling)
Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
Monitor kit – optional
