speaker aktive u15a beta three

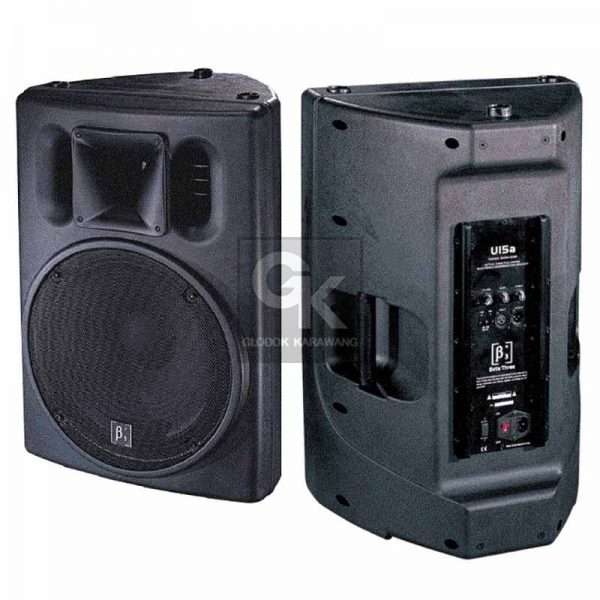

Speaker Aktive U15A Beta Three

Construction Plastic
Transducers 1 x 1.7”HF + 1 x 15”LF
Frequency Response (-3dB) 40Hz-18kHz
Rated Power 100W HF, 300W LF(RMS)
Amplifier Type Class H
Maximum SPL (1W @ 1m) 120dB (Peak)
Input Impedance Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance 8Ω
Dispersion (HxV ) 50°-100°x55°
Connector 2 x XLR
Power Supply 110V/220V
Dimensions (W x D x H) 485mm(19.1”)x460mm(18.1”)x700mm(27.6”)
Packaging Dimensions (1piece/pack) 545mm(21.5”)x515mm(20.3”)x800mm(31.5”)
Net Weight (1piece/pack) 30.5kg(67.2lb)
Gross Weight (1piece/pack) 33.7kg(55.6lb)

Share this product


Product Description

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.
Key Features and Benefits:
High output SPL and sensitivity
1 x 15” high power transducer with 50mm voice coil
1 x 1.7” diaphragm compression driver
Rotatable Horn: 50º-100º x 55º controlled coverage pattern
Built-in Bi-amp power amplifier module
Master volume control
Bass and Treble control
XLR input and output connectors
Switchable between Mic and Line input
Heavy duty protective grill
Injection molded
2 x XLR connector
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling)
Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
Monitor kit – optional

Additional Information


Beta Three
