Description
Rated Input : 15W (100V)
Rated Impedance : 100V Line, 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)
Sensitivity : (500-5,000Hz, pink noise) 96dB (1W, 1M)
Frequency Response : 45-20,000Hz (at 20dB below peak)

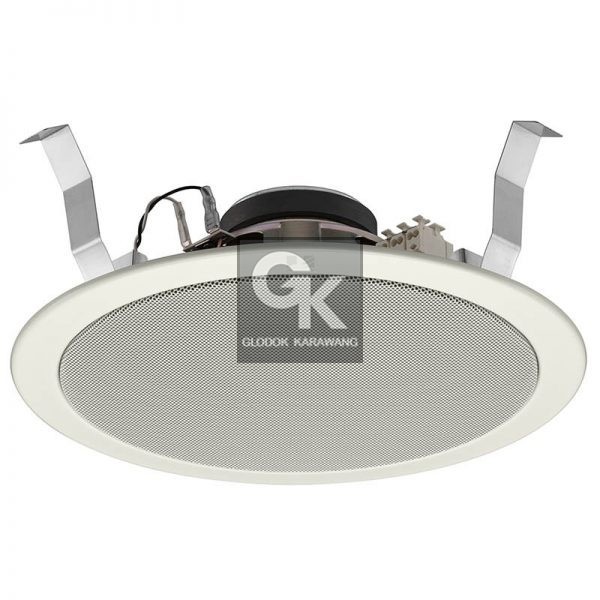

Speaker Component : 20cm (8″) coaxial cone type
Dimensions for Fixing Hole : Φ250 ±3mm (9.84″ ±0.12″)
Ceiling Thickness for Mounting : 5-25mm (0.2″-0.98″)
Speaker Mounting Method : Spring Clamp
Application Cable : 600V Vinyl-insulated cable (IV wire or HIV wire), Solid Wire : Φ0.8 – Φ1.6mm (equivalent to awg 20-14), 7-core twisted wire : 0.75-1.25mM3 (equivalent to AWG 18-16)
Connection : Push-in connector (bridging terminal-2 branch type)
Finish : Baffle : Steel plate, off white (RAL 9016 or equivalent color), paint, Grille : Surface-treated steel plate net, off white (RAL 9016 or equivalent color), paint
Dimensions : Φ280 x 92d (mm), (Φ11.02″ x 3.62″)
Weight : 1.6g (3.53lb)
