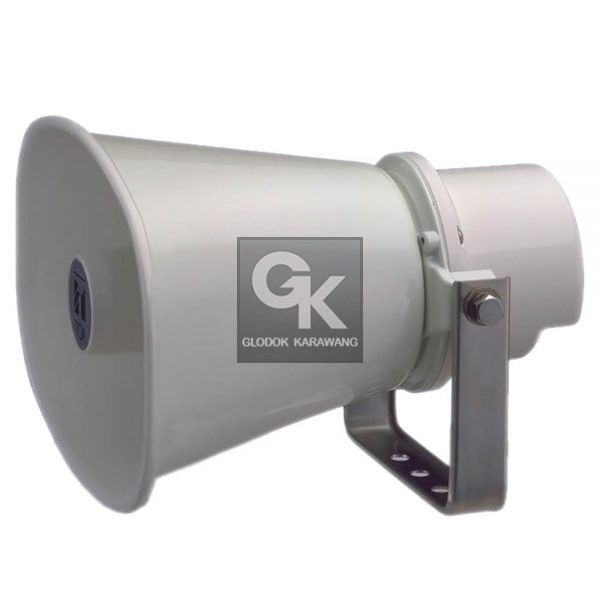

Speaker Horn ZH-610SM Toa

Description

Rated Input 10 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W),
3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sound Pressure Level 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 315 Hz – 12.5 kHz
Sensitivity when used as Microphone (0 dB=1 mW/10 dynes/c㎡) -24 dB at 1 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 172 (W) × 161 (H) × 188 (D) mm
Weight 1.2 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
