speaker horn 615s toa

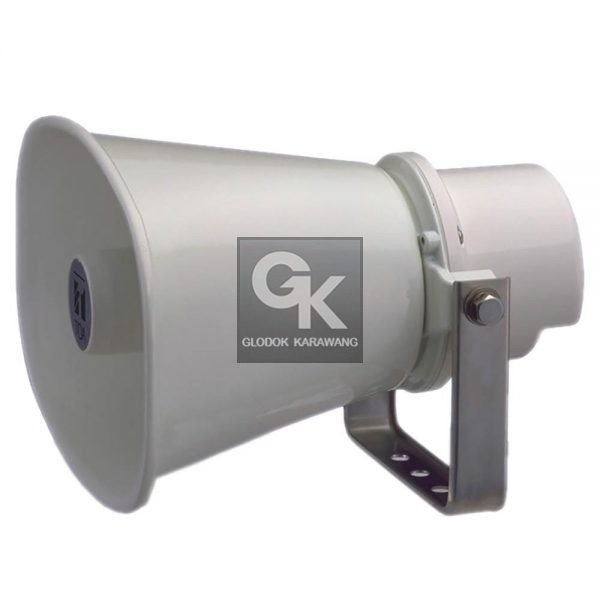

Speaker Horn ZH-615S Toa

The ZH-615S is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

Category:

Description

Rated Input 15 W (Mobile Mount use: 10 W)
Rated Impedance 8 Ω
Sound Pressure Level 112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 280 Hz – 12.5 kHz
Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) -22 dB at 1 kHz
Dust/Water Protection IP65
Polarity Hot: Black , Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 222 (W) × 179 (H) × 234 (D) mm
Weight 1.1 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.

Additional information

Brand

Toa
