Description
Power Source : AC In : 220-240V, 50/60Hz, DC In : 12V 1A, Max. 18V, DC : 12V/2.3Ah (Rechargeable Battery)
Power Consumption : AC : 20W, 0.1A (at Rated Output), DC : 30W, 1.6A (at Output Power Max)
Output Power : 20W
Frequency Response : 60Hz – 20kHz, ±3dB
Distortion : Less Than 5%
Input : Mic 1 & 2 : -40dB* Unbalanced 5kΩ, 2Pole-Phone Jack, Aux In : -20dB* Unbalanced 10kΩ, RCA Pin Jack
Outputs : Audio Out : -25dB* Unbalanced 40kΩ, RCA Pin Jack, Speaker Out : 8-16Ω, RCA Pin Jack
Sources

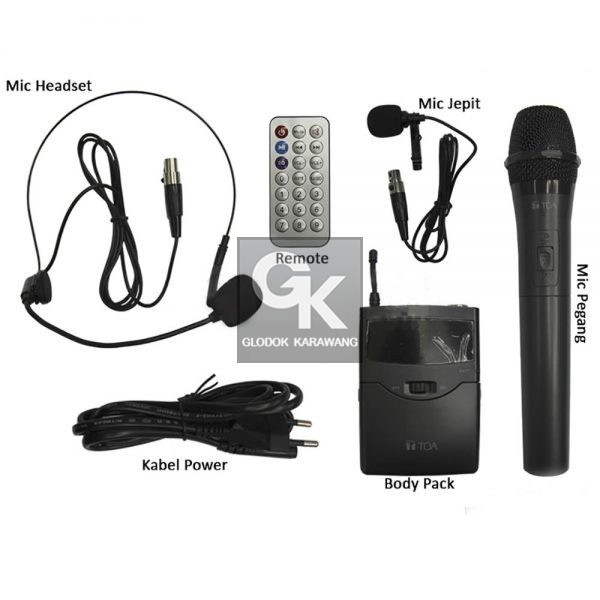

: Handheld microphone, Frequency Range 180-200MHz, RF Power Output <10mW | Body Pocket microphone (can be used with TieClip Mic or Headset Mic), Frequency Range 180-200MHz, RF Power Output <10mW | USB Player (support up to 32GB), Recording function, Type of File (MP3 file and Wav file) | SD/MMC Card Player (support up to 32GB), Recording function, Type of File (MP3 file and Wav file) | Cassette Player, Recording function | FM Radio (88-108MHz)

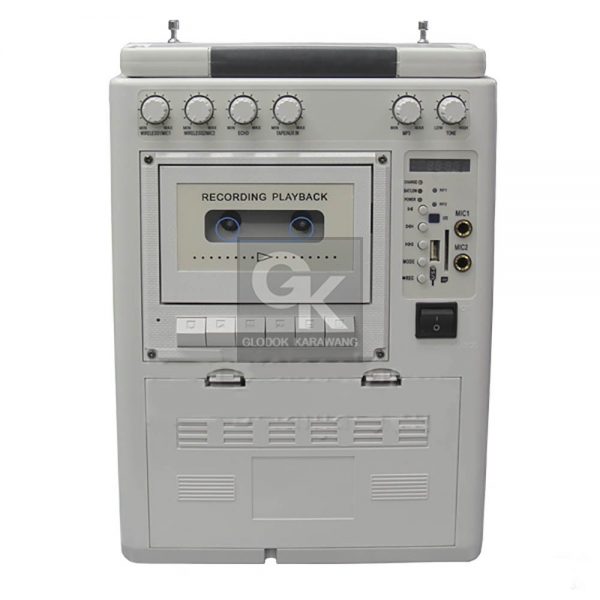

Control : 2 Microphone Gain Controls, 1 Aux Gain Controls, 1 MP3 Gain Controls, 1 Echo Controls, 1 Tone Controls, 1 Power ON/OFF Switch
Indicators : 1 LCD Display, 1 LED Charge, 1 LED Bat Low, 1 LED Power, 1 LED RF1, 1 LED RF2, 1 LED Rec (for USB/SD Card), 1 LED Record Cassette
Battery Life : Approx. 5 Hours, Continous Music
Charging Time : 12 Hours, 12V/2.3Ah, Lead Acid Battery, 1 Pcs
S/N Ratio : 60dB or More
Antenna : Rod Antenna
Speaker : 6″ Cone (150mm), 4Ω, Full Range
Operating Temperature : 0°C to + 40°C
Finish : Plastic Resin, Light Gray
Dimensions : 234 (W) x 341 (H) x 180 (D) mm, (9.21″ x 13.42″ x 7.08″)
