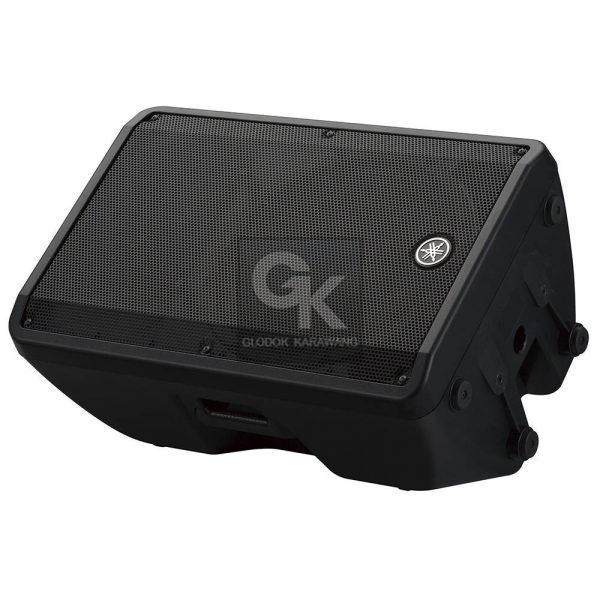

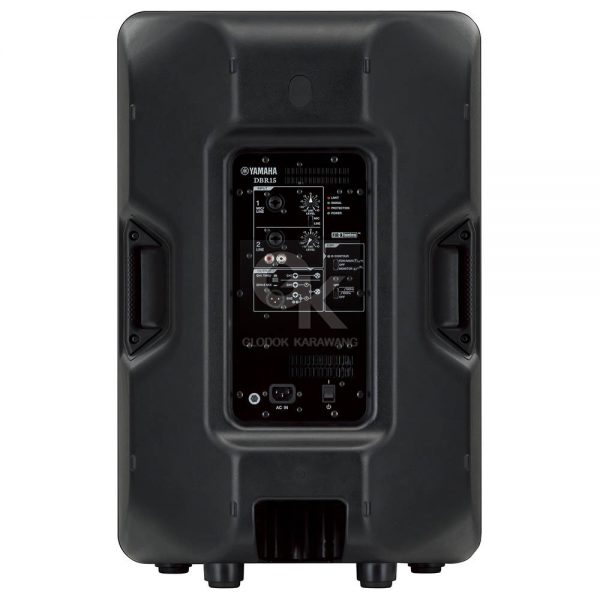

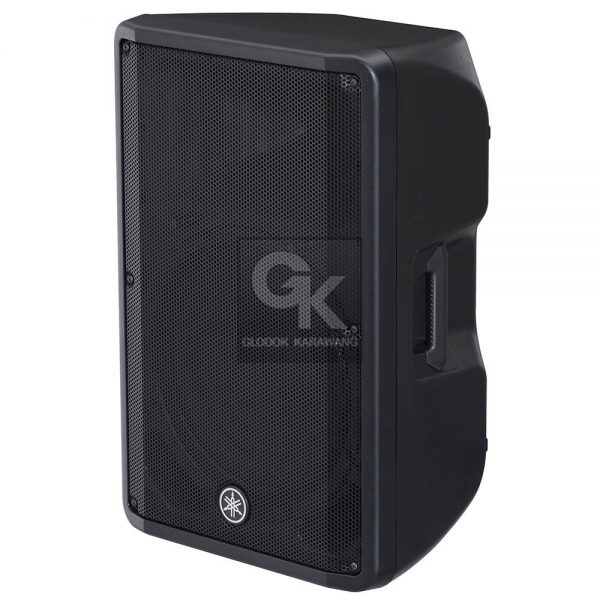

Speaker Aktive DBR15 Yamaha
Type speaker : 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range : 50Hz – 20kHz
Komponen LF : Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite
Komponen HF : Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover : 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Daya keluar : Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Tingkat keluar maksimum : 132dB SPL
Prosessor : D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation : Fan cooling, 4 speeds
Konsumsi daya : 74W(1/8 Power Consumption), 18W(Idle)
Berat bersih : 19.3kg
